Steel Cnc Precision Machining Parts Automatize Checking Fixture 500mm Longhole

Steel Cnc Precision Machining Parts Automatize Checking Fixture 500mm Longhole

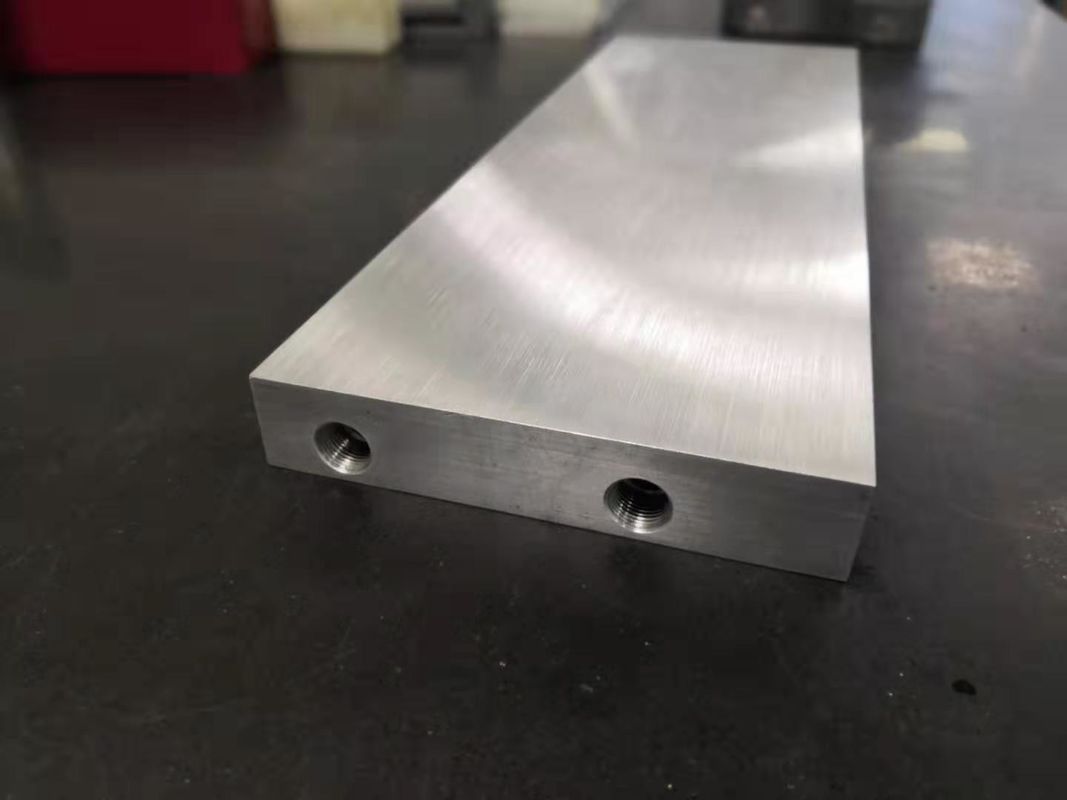

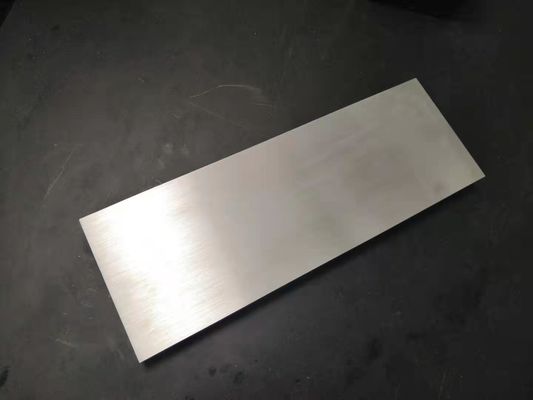

High-quality custom Automatize checking fixture Custom fixturing 500mm longhole

Automation production line Fixture

Material:A5052            Rugosity:Ra1.6     Tolerance:0.03-0.05mm
Flatness:0.1mm           longhole:500mm   Conical spiral teeth

L*W*H(mm)=500mm*200mm*29.5mm

Metal:1.2344,SUJ2,45#,F125,F141,CK45,SKD11,Q235,A5052,

SUS304,POM,PVC,steel,Al,section bar,etc..
machine:CNC processing center,CNC lathe,Wire cutting macine,Milling machine,

Grinding machine,EDM,wire cutting, Grinder, Bench, Metal plate.
Purpose:Industrial using(Customization).Mobile phone assembly fixture,

Steaming fixture with optical lenses, Inspection fixture of Optical Communication Products,

Diamond Grinding fixture,Ceramic Products fixture,Electrical conduction inspection fixture,

Medical Wire Harness fixture,Auto parts assembly fixture,Aerospace Inspection and

Main Products Display

Key Production Equipment Display

Continuing to invest heavily in our facilities , we aim to bring you the most reliable,efficient

and affordable metal component.our highly skilled and professional workforce is dedicated

to satisfying the individual needs of all our customers and various markets the serve.

Our advantages:
① Mechanical processing - heat treatment - surface treatment and assembly,

we are committed to offer you and one-stop solution .
➁ No matter how much the production is, we will take it seriously and do our best.
③ The fastest response is to strive for race against time for the customer,

and the courier will cooperate with the customer's trial production and mass production.
④ In order to ensure quality, we carry out strict first sample inspection,

rocess inspection, shipment inspection, and every process is strictly checked.

We try every means to prevent defective products from flowing into the next

process and customer place.
⑤ Overseas logistics experience, FOB, CIF, DAP and other trade terms.

what is CNC?

The Basics Of CNC Machining

CNC (Computer Numerical Controlled) machining is a means to remove material with high precision

machines, using a wide variety of cutting tools to create the final design. Common CNC machines

include vertical milling machines, horizontal milling machines, lathes, and routers.

How CNC Machining Works

To successfully make a part on a CNC machine, skilled machinists create programmed instructions using

CAM (Computer Aided Manufacturing) software in conjunction with the CAD (Computer Aided Design)

model provided by the customer. The CAD model is loaded into the CAM software and tool paths are

created based on the required geometry of the manufactured part. Once the tool paths are determined,

the CAM software creates G-Code (machine code) that tells the machine how fast to move, how fast to

turn the stock and/or tool, and where to move the tool or workpiece in a 5-axis X, Y, Z, A, and B

coordinate system.

Our customers and markets

We Are Committed To Fulfilling Your Needs,We Are Proud Of Your Every Success
