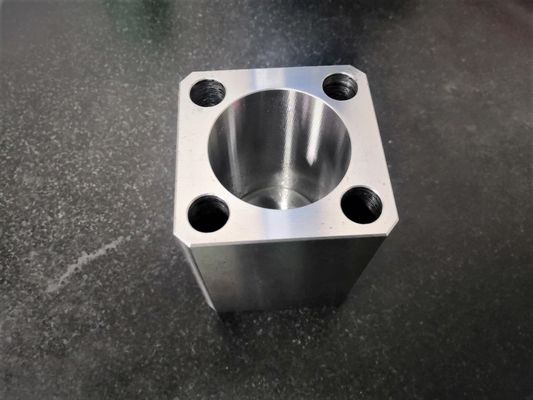

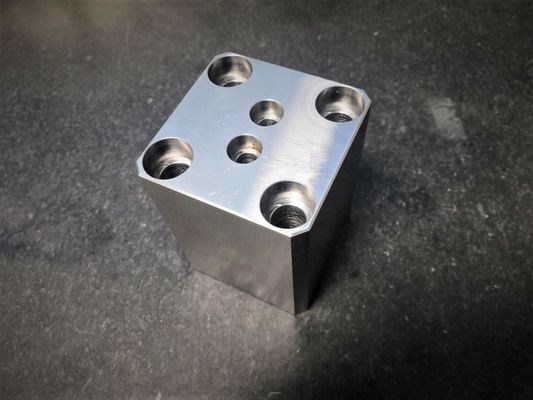

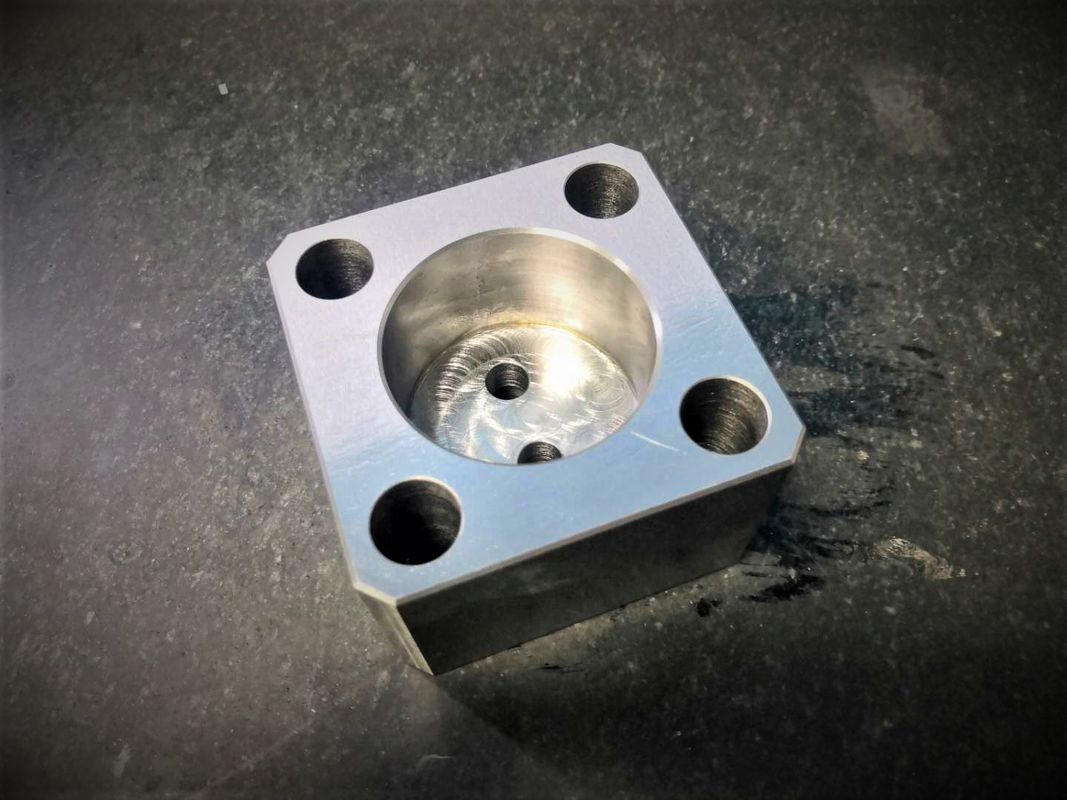

SKD11 Ra0.8 0.01mm Flatness Precision Machined Parts

OEM customized Cnc Precision Parts Plastic Injection Mold Parts Slider parts

Product details:

Material: SKD11       Rugosity:Ra0.8        Tolerance:0.01mm

Flatness:0.01mm     L*W*H(mm)=75mm*75mm*99mm

Main Product Display:

Metal:SUS430,SUS316,7075,45#,SKD11,DC53,SUS304,S136
Machine:CNC processing center,CNC lathe,Wire cutting macine,Milling machine,Grinding machine,
Surface treatment:nickel plating,chrome plating,anodizing.

Purpose:Semiconductor Machinery,Laser Cutting Equipment,Communication equipment,

Testing equipment,Medical equipment,Electronics equipment,agricultural machinery,

electrical appliances products,Electronic devices, SMT Industrial field, etc.Vessel, Military,

Electric Tool Parts,Monitoring equipment,Communication Equipment,Audio Equipment

Parts,Digital Camera Parts,Mining Machinery Parts,Petroleum Mining Machinery Parts,

Bridge structural parts,Microscope Bracket Parts,Juice extractor parts,Mountaineering

Equipment Parts,Fishing gear parts,Sports Equipment Parts,Fitness Equipment Parts,

Photographic equipment parts,Furniture Hardware Parts,Mower Parts,Intelligent Robot Parts,

key Machine Display:

metal component.our highly skilled and professional workforce is dedicated to satisfying the individual

needs of all our customers and various markets the serve.

Latest technology including:

CNC Milling Service

CNC Turning Service

CNC Milling and Turning Multiple

Mechanical Parts Design

Precision Engineering Services

Parts Assemble

EDM-Wire Cutting

Laser Cutting

Precision Grinding

Auto-Lathing Turning

Injection Moulding

MIMMoulding Die Casting

Production Capabilities Minimum Tolerance

Outer diameter dimension(turning Process) 0.01mm

Outer diameter dimension(centerless grinding process) 0.005mm

Outer diameter dimension(step grinding process) 0.005mm

Internal diameter dimension(turning process) 0.01mm

Center distance dimension( CNC milling process) 0.01mm

length,width,high(cnc milling process) 0.01mm

surface roughness Ra0.2a

Run-out 0.01mm

Roundness 0.01mm

Flatness 0.01mm

perpendicular 0.01mm

Cylindricity 0.01mm

Quality policy:

We can't give you the lowest price, we can only give you good quality. We would rather

explain the price to you for a while than apologize for the quality for a lifetime. If we only

want to pursue profits, we can achieve the goal of fast sales by reducing costs. But we think

that only perfect quality is our pride, in order to promise that we will not be proud of

short-term benefits. Selling the future, our efforts and persistence are recognized and

followed by more and more customers, which is the greatest driving force for us to continue

to move forward. We can not thank you, but only report quality.

Quality Inspection Links and Inspection Items		Introduction of Various Quality Testing Instruments
1.Inspection of raw materials		3CMM
IQC Inspectors will inspect surface,size and matcertificate provided of materials.		CMM can be defined as "a detector which can move in three directions.

                                ▼                                                                    ▼

2.First sample inspection		3CMM
Technicians and quality personnel will carry out self-inspection of the first sample, Batch production can not begin until the full size is qualified		Meanwhile length, width,height, verticality, parallelism, cylindricity and contour accuracy can be measured.

                               ▼                                                                     ▼

3.Process Inspection & Circuit Inspection		2.5CMM
IPQC-checked regularly After start of mass production, we can find out influence of mechanical equipment changes and tool wear on size in time.		Usually takes the image into the computer through CCD for measurement and calculation.

                               ▼                                                                     ▼

4.Air tightness check, water pressure check		High Altimeterr
If you have assembled parts of product and required to inspect withstand pressure and leak inspection, we can do it.		High Altimeter (also known as altimeter) is used to measure the height of space points relative to the ground.

                               ▼                                                                     ▼

5.Final Inspection of Manufacturing Process		Micrometer	Calipers
FQC is abnormal, it will be considered there is a quality problem between the inspection tour to final product. the FQC is an important link to ensure quality.

                              ▼                                                                      ▼

6.Full inspection of appearance and key dimensions		Comparator	Inner diameter micrometer
All finished products will be inspected for scratches, bruises, debris, threads, burrs and other appearance problems.

                              ▼                                                                       ▼

7.Over Quantity Check		Pin gauge,block gaugeT	hread gauge, pass gauge
OQC will carry out strict inspection according to drawings and quantity order. This inspection is also the last defensive wall to prevent the flow of defective products.

                               ▼                                                                     ▼

8. Fill in the quality inspection report		Material Sheet	Quality inspection report
The results of actual measurement are collated and the quality inspection report is made. Delivery with goods to customers.

                              ▼                                                                      ▼

9. Packing		Rohs report	MSDS Sheet
Finally, it is packed into special cartons or composite boxes to arrange related logistics and transportation
