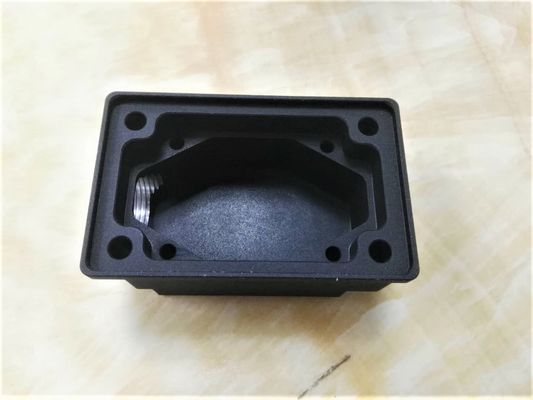

Die Casting Precision Cast Products Rustproof For Mechanical Audio Equipment

Die Casting Precision Cast Products Rustproof For Mechanical Audio Equipment

Chinese custom die-casting parts mechanical spare parts with high precision machining parts

Audio Equipment Parts

Material: ADC-12 Surface:Powder Coating Concentricity:0.03mm

Tolerance:0.01-0.03mm Flatness:0.1mm L*W*H(mm)=60mm*33mm*30mm

Main Product Display:

Metal:ADC-1,ADC-12,DIN 1706:231,DIN 1706:260,AlSi9Cu3,A380 A356,
Machine:Die casting machine
Suface treatment:dusting,baking finish,stoving varnish,anodizing,sand blasting treatment
Purpose:Agricultural machinery, machine tool industry, electronic industry, national defense industry,

computer, medical equipment, clocks, cameras, daily hardware, automotive accessories, furniture

accessories, bathroom accessories, lighting parts, toys, planer, tie clip, electrical and electronic

parts, belt buckles, watch , metal buckles, locks, zippers, industrial furnaces, etc.

Main Products Display

KEY PRODUCTIONG EQUIPMENT DISPLAY

QUALITY MANUFACTURING

We understand that customer's satisfied with the quality and service is an important indicator

of successful companies.The way the company wins depends on high-precision machine for

high quality requirements of various components.We may not be able to get the lowest price,

but we will do our best to offer you the best quality products,we prefer to explain you about

the price for a while,but don't want to apologize for the quality of life.If only pursuit of profit,

we can reduce costs to achieve the purpose of fast sales,but we believe that only the perfect

quality is what we prided,is our biggest value embodiment.Our efforts and perseverance have

also been recognized and followed by more and more customers.This is the biggest motivation

for us to continue and move forward.Good quality,the only way to express our thanks!

We can't give you the lowest price, we can only give you good quality. We would rather

explain the price to you for a while than apologize for the quality for a lifetime. If we only

want to pursue profits, we can achieve the goal of fast sales by reducing costs. But we think

that only perfect quality is our pride, in order to promise that we will not be proud of

short-term benefits. Selling the future, our efforts and persistence are recognized and

followed by more and more customers, which is the greatest driving force for us to continue

to move forward. We can not thank you, but only report quality.

Quality Inspection Links and Inspection Items		Introduction of Various Quality Testing Instruments
1.Inspection of raw materials		3CMM
IQC Inspectors will inspect surface,size and matcertificate provided of materials.		CMM can be defined as "a detector which can move in three directions.

                                ▼                                                                    ▼

2.First sample inspection		3CMM
Technicians and quality personnel will carry out self-inspection of the first sample, Batch production can not begin until the full size is qualified		Meanwhile length, width,height, verticality, parallelism, cylindricity and contour accuracy can be measured.

                               ▼                                                                     ▼

3.Process Inspection & Circuit Inspection		2.5CMM
IPQC-checked regularly After start of mass production, we can find out influence of mechanical equipment changes and tool wear on size in time.		Usually takes the image into the computer through CCD for measurement and calculation.

                               ▼                                                                     ▼

4.Air tightness check, water pressure check		High Altimeterr
If you have assembled parts of product and required to inspect withstand pressure and leak inspection, we can do it.		High Altimeter (also known as altimeter) is used to measure the height of space points relative to the ground.

                              ▼                                                                      ▼

5.Final Inspection of Manufacturing Process		Micrometer	Calipers
FQC is abnormal, it will be considered there is a quality problem between the inspection tour to final product. the FQC is an important link to ensure quality.

                              ▼                                                                      ▼

6.Full inspection of appearance and key dimensions		Comparator	Inner diameter micrometer
All finished products will be inspected for scratches, bruises, debris, threads, burrs and other appearance problems.

                              ▼                                                                       ▼

7.Over Quantity Check		Pin gauge,block gaugeT	hread gauge, pass gauge
OQC will carry out strict inspection according to drawings and quantity order. This inspection is also the last defensive wall to prevent the flow of defective products.

                               ▼                                                                     ▼

8. Fill in the quality inspection report		Material Sheet	Quality inspection report
The results of actual measurement are collated and the quality inspection report is made. Delivery with goods to customers.

                              ▼                                                                     ▼

9. Packing		Rohs report	MSDS Sheet
Finally, it is packed into special cartons or composite boxes to arrange related logistics and transportation

Our measuring equipment:
CMM
Projector
Concentricity measurement
Hardness tester
Thread Ring Gauges
Pin Gauges
Micrometer
Vernier Caliper
Roughness machine

Common question

How long can I get a quotation?
We respond within 24 hours when receive an RFQ. Normally a quotation will take 1-3days.

If there is delayed, we will notify you as soon as possible.

How quickly can I get my parts?
Lead times is normally 2-3 weeks when get your complete 2D and 3D CAD models from

the order date. Complex parts requiring or large quality order will take longer.
We are able to be competent for some urgently needed project as well.
As for shipping, most of our shipments are via Express or by Air, which will take 3-7days

to your door.

What after-sales service can I get for any unsatisfied parts I receive?
To ensure high quality of our machined components, we have detailed quality control

system and full-equipped measuring equipments. We guarantee all the dimension based

on the information provided by you. We have confidence in our ability to meet and

exceed any reasonable expectations.

Can XINYA make technical drawings for my design?
We can provide a drawing for Manufacturing review according to your current

2D,3D CAD draft or a sample offered by you. We of course will sign and adhere to

any non-disclosure or confidentiality agreement if your design is confidential.
