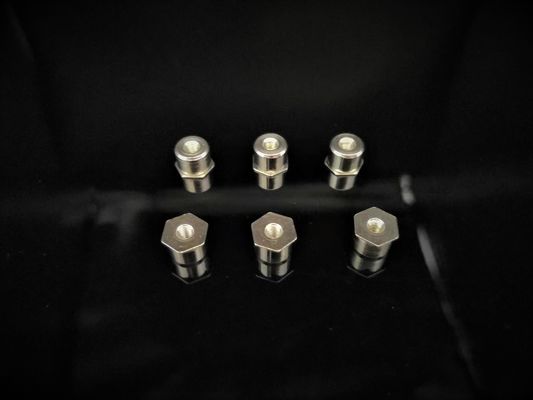

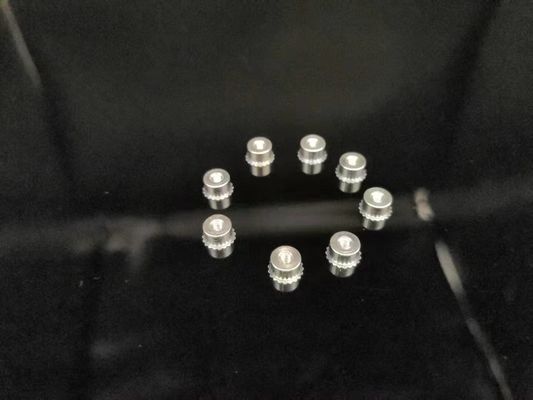

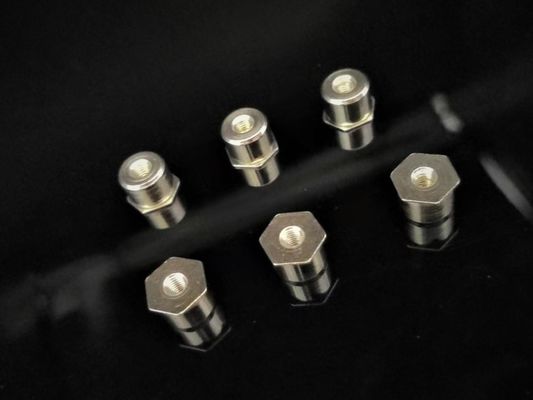

Anodize Rapid Prototype Machining Cnc Hardware Kit For Electronic Products

Anodize Rapid Prototype Machining Cnc Hardware Kit For Electronic Products

Product Details:

CNC Turning Parts SEMS Screws Sheet Metal Screws Nut Screw of PCB and 3C

products Instruments,Electronic products All kinds of machinery

Material:Brass C1220        Surface:Passivation 　  Concentricity:0.03mm
Rugosity:Ra0.8                  Tolerance:0.01-0.03mm Diameter:Ø10mm
L*W*H(mm)=10mm*10mm*12mm,


Main Products Display

Metal:C22,C45,F141,1.2344,SUS303,SUS304,SUS316,30CrMn, Black Oxide

Stainless Steel, Solid Brass, and Silicon Bronze,Plastic.
Machine:Multi-Axis turning,CNC lathe,CNC machinging center,.
Surface polishing,zinc plating,brass plating,nickel plating,dacromet,electrophoresis,

Passivation,etc.Heat Treatment.
Purpose:All kinds of machinery,Equipment,Vehicles,Ships,Railway,Bridges,Architecture,

Structure,Tools,Instruments,Electronic products,Medical instruments,optical instrument

MeterMachine Screws
Stove Bolts in a Variety of Drive, Head and Thread Styles
A machine screw is a screw or bolt with a flat point. Available in a variety of drive styles,

machine screw sizes, heads and materials to fit a wide range of application needs. These

fasteners are either used with nuts or driven into tapped holes. In practice, machine screw

sizes tend to be smaller. Pan head, flat head, oval head and truss head stove bolts are the

most popular varieties.

KEY PRODUCTIONG EQUIPMENT DISPLAY

Quality Inspection Links and Inspection Items		Introduction of Various Quality Testing Instruments
1.Inspection of raw materials		3CMM
IQC Inspectors will inspect surface,size and matcertificate provided of materials.		CMM can be defined as "a detector which can move in three directions.

                                ▼                                                                    ▼

2.First sample inspection		3CMM
Technicians and quality personnel will carry out self-inspection of the first sample, Batch production can not begin until the full size is qualified		Meanwhile length, width,height, verticality, parallelism, cylindricity and contour accuracy can be measured.

                               ▼                                                                     ▼

3.Process Inspection & Circuit Inspection		2.5CMM
IPQC-checked regularly After start of mass production, we can find out influence of mechanical equipment changes and tool wear on size in time.		Usually takes the image into the computer through CCD for measurement and calculation.

                               ▼                                                                     ▼

4.Air tightness check, water pressure check		High Altimeterr
If you have assembled parts of product and required to inspect withstand pressure and leak inspection, we can do it.		High Altimeter (also known as altimeter) is used to measure the height of space points relative to the ground.

                              ▼                                                                      ▼

5.Final Inspection of Manufacturing Process		Micrometer	Calipers
FQC is abnormal, it will be considered there is a quality problem between the inspection tour to final product. the FQC is an important link to ensure quality.

                              ▼                                                                      ▼

6.Full inspection of appearance and key dimensions		Comparator	Inner diameter micrometer
All finished products will be inspected for scratches, bruises, debris, threads, burrs and other appearance problems.

                              ▼                                                                       ▼

7.Over Quantity Check		Pin gauge,block gaugeT	hread gauge, pass gauge
OQC will carry out strict inspection according to drawings and quantity order. This inspection is also the last defensive wall to prevent the flow of defective products.

                               ▼                                                                     ▼

8. Fill in the quality inspection report		Material Sheet	Quality inspection report
The results of actual measurement are collated and the quality inspection report is made. Delivery with goods to customers.

                              ▼                                                                     ▼

9. Packing		Rohs report	MSDS Sheet
Finally, it is packed into special cartons or composite boxes to arrange related logistics and transportation

Our measuring equipment:
CMM
Projector
Concentricity measurement
Hardness tester
Thread Ring Gauges
Pin Gauges
Micrometer
Vernier Caliper
Roughness machine
Our precision machined components are implemented of ISO9001:2015,combined with

our in-house quality control system and these measuring equipments,ensure problem-free

products.

Common question

How long can I get a quotation?
We respond within 24 hours when receive an RFQ. Normally a quotation will take 1-3days.

If there is delayed, we will notify you as soon as possible.

How quickly can I get my parts?
Lead times is normally 2-3 weeks when get your complete 2D and 3D CAD models from

the order date. Complex parts requiring or large quality order will take longer.
We are able to be competent for some urgently needed project as well.
As for shipping, most of our shipments are via Express or by Air, which will take 3-7days

to your door.

What after-sales service can I get for any unsatisfied parts I receive?
To ensure high quality of our machined components, we have detailed quality control

system and full-equipped measuring equipments. We guarantee all the dimension based

on the information provided by you. We have confidence in our ability to meet and

exceed any reasonable expectations.

Can XINYA make technical drawings for my design?
We can provide a drawing for Manufacturing review according to your current

2D,3D CAD draft or a sample offered by you. We of course will sign and adhere to

any non-disclosure or confidentiality agreement if your design is confidential.

It is our goal to meet our customers’ expectation through good quality,

fast delivery service, productivity and continuous improvement.
Shenzhen Xinya Precsion Co., Ltd. and Hongkong Winhoo precision co.,ltd

is to be your best choice and long-term partner.
