Plastics CNC Hardware Parts Printer Shaft Slender Axis Major Long Axis Roller Motor Shaft

Plastics CNC Hardware Parts Printer Shaft Slender Axis Major Long Axis Roller Motor Shaft

Product details:

High-performance Centerless Grinding of Parts Rotary Shaft Partslong axis Roller

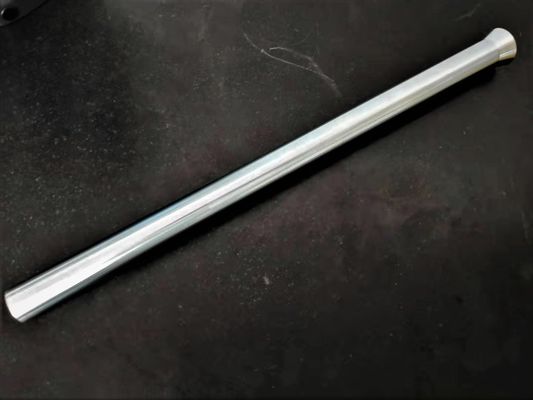

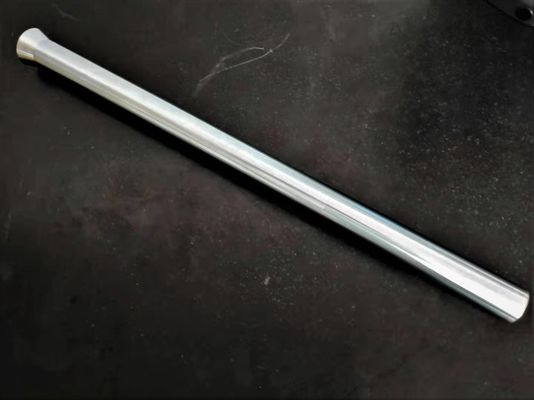

CNC Turning Stainless Steel Shaft Part with Smooth Finish

Material: SUS304        Surface:polishing             Concentricity:0.03mm

Rugosity:Ra0.4           Tolerance:0.01-0.03mm    Diameter:Ø40mm

L*W*H(mm)=40mm*40mm*450mm

Main Products Display:

Metal:C22,C45,F141,1.2344,SUS303,SUS304,SUS316,30CrMn, Black Oxide Stainless Steel,

Solid Brass, and Silicon Bronze,Plastic.
Machine:Multi-Axis turning,CNC lathe,CNC machinging center,.
Surface polishing,zinc plating,brass plating,nickel plating,dacromet,electrophoresis,Passivation,etc.

Heat Treatment.
Purpose:All kinds of machinery,Equipment,Vehicles,Ships,Railway,Bridges,Architecture,Structure,

Tools,Instruments,Electronic products,Medical instruments,optical instrument

A fastener (US English) or fastening (UK English)is a hardware device that mechanically joins or

affixes two or more objects together. In general, fasteners are used to create non-permanent joints;

that is, joints that can be removed or dismantled without damaging the joining components.Welding

is an example of creating permanent joints. Steel fasteners are usually made of stainless steel,

carbon steel, or alloy steel.Fasteners are tools that are typically used to hold to materials together.

You probably know them as screws, nuts and bolts or a similar object.

Key Equipment Display

Quality Management System

Customer's requirement is our standard. In the long-term production process, we have

established a perfect quality management system, so that product quality can be controlled

steadily in the manufacturing process. We strictly enforce the operation rules and quality

standards from the aspects of material purchasing, R&D and design, process flow and

quality inspection, all of which originate from our unremitting pursuit of quality.

We can't give you the lowest price, we can only give you good quality. We would rather

explain the price to you for a while than apologize for the quality for a lifetime. If we only

want to pursue profits, we can achieve the goal of fast sales by reducing costs. But we think

that only perfect quality is our pride, in order to promise that we will not be proud of

short-term benefits. Selling the future, our efforts and persistence are recognized and

followed by more and more customers, which is the greatest driving force for us to continue

to move forward. We can not thank you, but only report quality.

Quality Inspection Links and Inspection Items		Introduction of Various Quality Testing Instruments
1.Inspection of raw materials		3CMM
IQC Inspectors will inspect surface,size and matcertificate provided of materials.		CMM can be defined as "a detector which can move in three directions.

                                  ▼                                                                     ▼

2.First sample inspection		3CMM
Technicians and quality personnel will carry out self-inspection of the first sample, Batch production can not begin until the full size is qualified		Meanwhile length, width,height, verticality, parallelism, cylindricity and contour accuracy  can be measured.

                                 ▼                                                                       ▼

3.Process Inspection & Circuit Inspection		2.5CMM
IPQC-checked regularly After start of mass production, we can find out influence of mechanical equipment changes and tool wear on size in time.		Usually takes the image into the computer through CCD for measurement and calculation.

                                 ▼                                                                        ▼

4.Air tightness check, water pressure check		High Altimeterr
If you have assembled parts of product and required to inspect withstand pressure and leak inspection, we can do it.		High Altimeter (also known as altimeter) is used to measure the height of space points relative to the ground.

                                 ▼                                                                        ▼

5.Final Inspection of Manufacturing Process		Micrometer	Calipers
FQC is abnormal, it will be considered there is a quality problem between the inspection tour to final product. the FQC is an important link to ensure quality.

                                  ▼                                                                        ▼

6.Full inspection of appearance and key dimensions		Comparator	Inner diameter micrometer
All finished products will be inspected for scratches, bruises, debris, threads, burrs and other appearance problems.

                                  ▼                                                                        ▼

7.Over Quantity Check		Pin gauge,block gaugeT	hread gauge, pass gauge
OQC will carry out strict inspection according to drawings and quantity order. This inspection is also the last defensive wall to prevent the flow of defective products.

                                    ▼                                                                      ▼

8. Fill in the quality inspection report		Material Sheet	Quality inspection report
The results of actual measurement are collated and the quality inspection report is made. Delivery with goods to customers.

                                    ▼                                                                      ▼

9. Packing		Rohs report	MSDS Sheet
Finally, it is packed into special cartons or composite boxes to arrange related logistics and transportation

Our measuring equipment:
CMM
Projector
Concentricity measurement
Hardness tester
Thread Ring Gauges
Pin Gauges
Micrometer
Vernier Caliper
Roughness machine
Our precision machined components are implemented of ISO9001:2015,combined with

our in-house quality control system and these measuring equipments,ensure problem-free

products.

Why are you choose us ?

1) We have our own factories, quality can be controlled seriously.

2) We Specialize in manufacturing about10 years.

3) We have professional testing department and testing equipment.

4) We have 12 rich experience engineers & 20 senior technicians.

5) Timely delivery and excellent service.

6) We believe Reasonable price = High quality + Best service.

QC System:

1) Confirmed all drawings with customer and design the production way.

2) Checking the raw material before coming into our warehouse.

3) Confirmed the samples, reports of material and specs with customer.

4) Checking the process, machine, and other details in the production line.

5) Checking every products before packing them.

6) Checking the package before delivery.

FAQ3:

Q1: Can XINYA make technical drawings for my design?

A1: We can provide a drawing for Manufacturing review according to your current 2D,3D

CAD draft or a sample offered by you. We of course will sign and adhere to any non-disclosure

or confidentiality agreement if your design is confidential.

Q2: How long can I get a quotation?

A2: We respond within 24 hours when receive an RFQ. Normally a quotation will take 1-3days.

If there is delayed, we will notify you as soon as possible.

Q3: How quickly can I get my parts?

A3: Lead times is normally 2-3 weeks when get your complete 2D and 3D CAD models from

the order date. Complex parts requiring or large quality order will take longer.We are able to

be competent for some urgently needed project as well.

As for shipping, most of our shipments are via Express or by Air, which will take 3-7days to your door.

Q4: What after-sales service can I get for any unsatisfied parts I receive?

A4: To ensure high quality of our machined components, we have detailed quality control

system and full-equipped measuring equipments. We guarantee all the dimension based

on the information provided by you. We have confidence in our ability to meet and exceed

any reasonable expectations.

Q5: Environmentally friendly materials have been used, and how does it work?

A5: The material corresponding to RoHS regulation and reach in Europe is available and is

actually used. For each material, if you have a request to use the material for the environment

from customers, we propose a suitable material and process it based on the decision.

Q6: Is the material readily available?

A6: Depending on the material. The procurement / T is somewhat different, and most of the

materials can be delivered on the next business day. However, it may be difficult to incorporate

materials in such s because it is often disturbed by the price of materials and the effect of

social conditions.

Q7: Worried about the scars on delivery, etc?　　　　　　　　　　　　　　　　　　　　　　　　　　　

A7: Please rest assured. Beanut bag, partition, cushioning material, tray, corrugated cardboard,

wooden box, etc.are firmly packaged in the form of packing. It is thought that there are various

bad conditions during transportation such as bad weather, unpaved road, trouble driving, and

collapsing. Even if there is such an unexpected event, I try to do the packing which does not

affect the product.

Q8: Can I have a check repot?

A8: Yes, of course. We inspect the dimensions of each item of the extracted item according to

the number of products to the inspection of our regulations, and decide whether it is possible or

not. ]The quality control department can be said to be the last defensive wall for not putting out

the defective product outside the company.

Q9: Can We assemble it?

A9: Yes, We can am good at mechanical assembly. The technique of joining multiple

parts with one shot and the best mechanical assembly

Q10: Is there no problem with size change due to heat treatment?

A10: The change of dimensions is different depending on the processing method, time

and quantity. There is no mistake until the processing of the metal does not leave the

hand of our company. Therefore, even if it is a plating one, the company may instruct

the film thickness and the color. Heat treatment is also big strain. We will take a look

at the strain and then put the Grinding or change the heat treatment method. Of

course,We have get the understanding from customer, and there is a that the

proposal of such as "how do I do this way" in many years experience?

Q11: How long is the quotation valid?

A11: The Quotation valid for 30 days. The unit price will not change unless there is a

significant change in the material cost and exchange rate. However, according to the

rules established by our company, we have to reestimate it for 30 days.

Q12: Can I get the ingredient sheet and other data of the materials?

A12: Yes, we can provide the ingredient sheet and date MSDS of materials, well as the

issued by the material manufacturer according to the customer's requirements.
