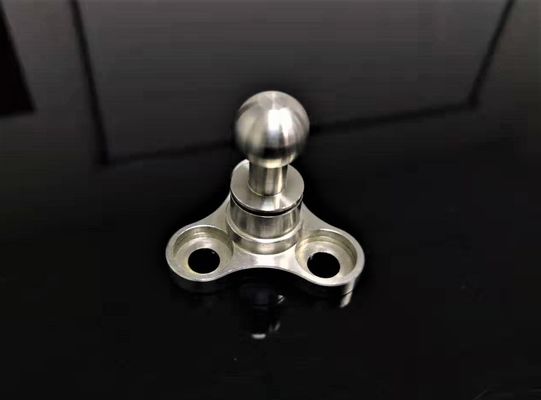

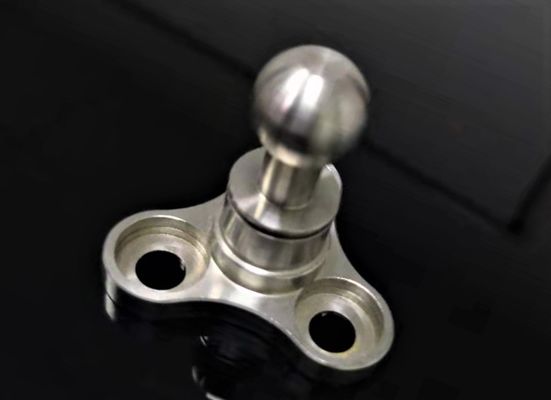

Prototype Bracket Aerospace Machined Parts Aluminum Stainless Steel Material

Prototype Bracket Aerospace Machined Parts Aluminum Stainless Steel Material

Aerospace parts precision CNC machining defense markets parts prototype Bracket Aerospace

and Precision machined parts

Material: Titanium TA9      Concentricity:0.01mm      Rugosity:Ra0.4

Tolerance:0.01-0.02mm   Diameter:Ø40mm               Flatness:0.01mm

L*W*H(mm)=40mm*40mm*45mm

Main Products Display

Metal:Titanium TC4,TA9,AL2A12,AL6082,AL6061,AL7075,SUS304,30CrMn.
Machine:CNC machinging center,CNC lathe,Wire cutting macine,Milling machine,Grinding machine,EDM.
Surface treatment:sand blast,,anodizing,Engraving,Gold plating.
Purpose:unmanned aerial vehicle,drone, UAV,Aerospace,Defense,Aircraft,Navigation, military.

Main Machining Machinery Display

Why are you choose us ?

1) We have our own factories, quality can be controlled seriously.

2) We Specialize in manufacturing about10 years.

3) We have professional testing department and testing equipment.

4) We have 12 rich experience engineers & 20 senior technicians.

5) Timely delivery and excellent service.

6) We believe Reasonable price = High quality + Best service.

QC System:

1) Confirmed all drawings with customer and design the production way.

2) Checking the raw material before coming into our warehouse.

3) Confirmed the samples, reports of material and specs with customer.

4) Checking the process, machine, and other details in the production line.

5) Checking every products before packing them.

6) Checking the package before delivery.

FAQ:

Q1:Are you a manufacturer?

A1:Yes, we are a medium size ISO9001 certificated manufacturer with a wide range of advanced

equipment.Warmly welcome to visit our factory so that you can make sure this point.

Q2:What is the MOQ?

A2:Minimum Order Quantity is one piece/set.If you require more qty,the price can be more competitive.

Q3:Can you do the mass production?

A3:Yes,we are a factory which can provide service of precision CNC machining, rapid prototyping,

wire cutting, tooling building and etc.After you confirm the samples, we can start mass production.

It is very convienient for customers to

Choose us as a one-stop solution supplier.

Q4:Which 3D drawing files should go with the machines?

A4:CNC machines only read *IGS,*STP,*STEP,*IGES,*X-T format, for *STL format,it goes with 3D printer and SLA.

Q5:Is it possible to know how are my products going on without visiting your company?

A5:We will offer a detailed production schedule and send weekly reports with pictures or videos

which show the machining progress.

Q6:Will my drawings be safe after sending to you?

A6:Yes, we will keep them well and not release to third party without your permission.

Q7:What shall we do if we do not have drawings?

A7:Please send your sample to our factory,then we can copy or provide you better solutions.

Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be

made for you if placed order.

Quality policy

Quality manufacturing we strive for perfection,we maintain good technical

interaction with suppliers and customers with efforts to drive for quality excellence in our products,we take

pride in every of our manufacturing and management process to eliminate errors and deficiencies .



We understand that customer's satisfied with the quality and service is an important indicator of successful

companies.The way the company wins depends on high-precision machine for high quality requirements

of various components.



It is our goal to meet our customers’ expectation through good quality, fast delivery service,

productivity and continuous improvement.Shenzhen Xinya Precsion Machining Co., Ltd.

is to be your best choice and long-term partner.



Quality Inspection Links and Inspection Items		Introduction of Various Quality Testing Instruments
1.Inspection of raw materials		3CMM
IQC Inspectors will inspect surface,size and matcertificate provided of materials.		CMM can be defined as "a detector which can move in three directions.

                                ▼                                                                    ▼

2.First sample inspection		3CMM
Technicians and quality personnel will carry out self-inspection of the first sample, Batch production can not begin until the full size is qualified		Meanwhile length, width,height, verticality, parallelism, cylindricity and contour accuracy can be measured.

                               ▼                                                                     ▼

3.Process Inspection & Circuit Inspection		2.5CMM
IPQC-checked regularly After start of mass production, we can find out influence of mechanical equipment changes and tool wear on size in time.		Usually takes the image into the computer through CCD for measurement and calculation.

                               ▼                                                                     ▼

4.Air tightness check, water pressure check		High Altimeterr
If you have assembled parts of product and required to inspect withstand pressure and leak inspection, we can do it.		High Altimeter (also known as altimeter) is used to measure the height of space points relative to the ground.

                               ▼                                                                     ▼

5.Final Inspection of Manufacturing Process		Micrometer	Calipers
FQC is abnormal, it will be considered there is a quality problem between the inspection tour to final product. the FQC is an important link to ensure quality.

                              ▼                                                                      ▼

6.Full inspection of appearance and key dimensions		Comparator	Inner diameter micrometer
All finished products will be inspected for scratches, bruises, debris, threads, burrs and other appearance problems.

                              ▼                                                                      ▼

7.Over Quantity Check		Pin gauge,block gaugeT	hread gauge, pass gauge
OQC will carry out strict inspection according to drawings and quantity order. This inspection is also the last defensive wall to prevent the flow of defective products.

                               ▼                                                                     ▼

8. Fill in the quality inspection report		Material Sheet	Quality inspection report
The results of actual measurement are collated and the quality inspection report is made. Delivery with goods to customers.

                              ▼                                                                      ▼

9. Packing		Rohs report	MSDS Sheet
Finally, it is packed into special cartons or composite boxes to arrange related logistics and transportation



Our measuring equipment:
CMM
Projector
Concentricity measurement
Hardness tester
Thread Ring Gauges
Pin Gauges
Micrometer
Vernier Caliper
Roughness machine
Our precision machined components are implemented of ISO9001:2015,combined with

our in-house quality control system and these measuring equipments,ensure problem-free

products.
