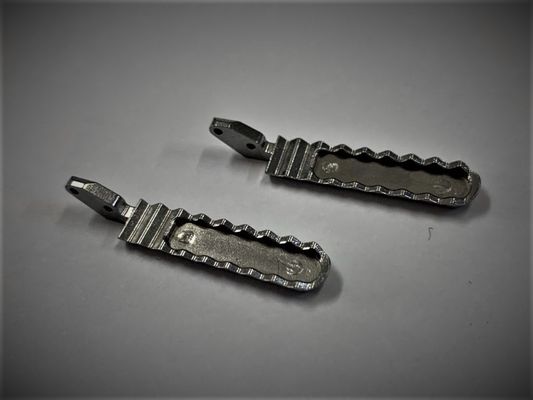

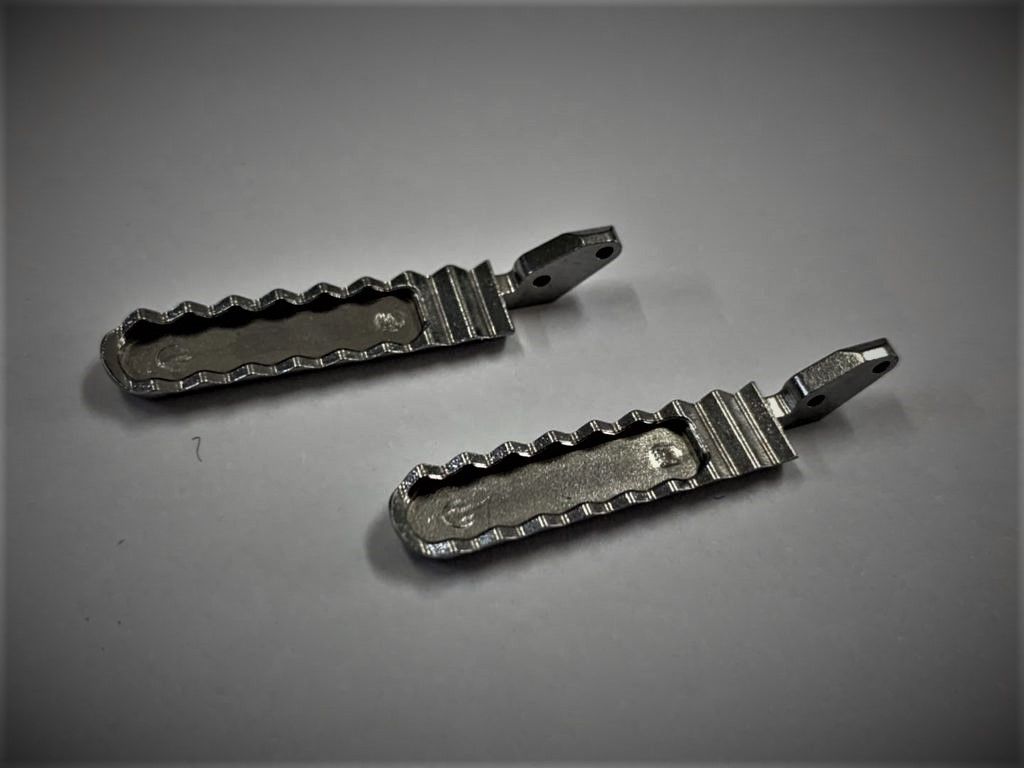

Fishing Equipment Metal Injection Molding Parts Sintered Metal Components

Fishing Equipment Metal Injection Molding Parts Sintered Metal Components

Product Details:Metal Injection Molding parts molding sintering parts MIM PIM of

Bicycle Parts Fishing Equipment Musical Instruments

Material: SUS304          Surface:polishing    Rugosity:Ra1.6

Tolerance:0.05-0.1mm  L*W*H(mm)=50mm*50mm*12mm

Main product display:

Metal:SUS316,SUS630,SUS410,SUS304,SUS420,SUS440

Machine:Injection molding machine,Sintering furnace

Suface treatment:Sintering

Purpose:Micro-Motor,Sheatsinke,Sensors,Solenoid Valves,Gears,Bearings,

Small Pump.Smicro-Actuators,Connectors,Medical Parts,Dental Equipment,

Equipment Inspection,Surgical,Bicycle Parts,Fishing Equipment,Golf Equipment,

Musical Instruments.

Metal injection molding, or MIM, is a manufacturing process in which metal powder is

mixed and kneaded together with a binder material and wax. The mixture is then

injected into a mold to form a compact. The molded compact is debound and sintered

to obtain the metal components.A wide variety of materials is available. Materials with

high melting points or poor machinability are usable.A smooth surface can be obtained

using a powder containing fine particles.It is possible to combine and assemble two or

more partsAny net shape is available, without any restrictions on side holes or under-cuts.
Excellent transcription of fine letters or patterns.Thin-walled structures are available.

Complex three-dimensional metal components can be mass-produced with high accuracy.

Main Products Display

KEY PRODUCTIONG EQUIPMENT DISPLAY

 Quality Policy

Quality Inspection Links and Inspection Items		Introduction of Various Quality Testing Instruments
1.Inspection of raw materials		3CMM
IQC Inspectors will inspect surface,size and matcertificate provided of materials.		CMM can be defined as "a detector which can move in three directions.

                                ▼                                                                    ▼

2.First sample inspection		3CMM
Technicians and quality personnel will carry out self-inspection of the first sample, Batch production can not begin until the full size is qualified		Meanwhile length, width,height, verticality, parallelism, cylindricity and contour accuracy can be measured.

                               ▼                                                                     ▼

3.Process Inspection & Circuit Inspection		2.5CMM
IPQC-checked regularly After start of mass production, we can find out influence of mechanical equipment changes and tool wear on size in time.		Usually takes the image into the computer through CCD for measurement and calculation.

                               ▼                                                                     ▼

4.Air tightness check, water pressure check		High Altimeterr
If you have assembled parts of product and required to inspect withstand pressure and leak inspection, we can do it.		High Altimeter (also known as altimeter) is used to measure the height of space points relative to the ground.

                              ▼                                                                       ▼

5.Final Inspection of Manufacturing Process		Micrometer	Calipers
FQC is abnormal, it will be considered there is a quality problem between the inspection tour to final product. the FQC is an important link to ensure quality.

                              ▼                                                                      ▼

6.Full inspection of appearance and key dimensions		Comparator	Inner diameter micrometer
All finished products will be inspected for scratches, bruises, debris, threads, burrs and other appearance problems.

                              ▼                                                                      ▼

7.Over Quantity Check		Pin gauge,block gaugeT	hread gauge, pass gauge
OQC will carry out strict inspection according to drawings and quantity order. This inspection is also the last defensive wall to prevent the flow of defective products.

                               ▼                                                                     ▼

8. Fill in the quality inspection report		Material Sheet	Quality inspection report
The results of actual measurement are collated and the quality inspection report is made. Delivery with goods to customers.

                              ▼                                                                      ▼

9. Packing		Rohs report	MSDS Sheet
Finally, it is packed into special cartons or composite boxes to arrange related logistics and transportation

Our measuring equipment:
CMM
Projector
Concentricity measurement
Hardness tester
Thread Ring Gauges
Pin Gauges
Micrometer
Vernier Caliper
Roughness machine
Our precision machined components are implemented of ISO9001:2015,combined with

our in-house quality control system and these measuring equipments,ensure problem-free

products.

Why are you choose us ?

1. Rich CNC machining experience.

XINYA was founded in 2008years, having a long history of 10 years.

Full experience accumulated in Precision CNC machining service on best quality

for medical, communications, photoelectric, auto parts processing,CNC Precision

machining. Mechanical processing - heat treatment - surface treatment and

assembly, we are committed to offer you and one-stop solution .

2. We have do business with many foreign customers from Europe/North America/

Aisa etc areas, like we have cooperation with GE and SUMITOMO,CANON for

around 10years. No matter how much the production is, we will take it seriously

and do our best.

3. We have had 60 sets machining,including CNC automatic lathes imported from

Japan, So this will help our company have bigger manufacturing capacity.

To meet more customers' precision request, we have CMM, PROJECTOR etc.

Precision inspection instruments to measuring our products.

In order to ensure quality, we carry out strict first sample inspection, process

inspection, shipment inspection, and every process is strictly checked. We try

every means to prevent defective products from flowing into the next

process and customer place.

4. We offer OEM/ODM service with reasonable production techniques for

customers to cut down the cost. Our engineering team use the UG/PROE/

SOLIDWORKS/MASTER etc software to support our production techniques.

FAQ3:

Q1: Can XINYA make technical drawings for my design?

A1: We can provide a drawing for Manufacturing review according to your current 2D,3D

CAD draft or a sample offered by you. We of course will sign and adhere to any non-disclosure

or confidentiality agreement if your design is confidential.

Q2: How long can I get a quotation?

A2: We respond within 24 hours when receive an RFQ. Normally a quotation will take 1-3days.

If there is delayed, we will notify you as soon as possible.

Q3: How quickly can I get my parts?

A3: Lead times is normally 2-3 weeks when get your complete 2D and 3D CAD models from

the order date. Complex parts requiring or large quality order will take longer.We are able to

be competent for some urgently needed project as well.

As for shipping, most of our shipments are via Express or by Air, which will take 3-7days to your door.

Q4: What after-sales service can I get for any unsatisfied parts I receive?

A4: To ensure high quality of our machined components, we have detailed quality control

system and full-equipped measuring equipments. We guarantee all the dimension based

on the information provided by you. We have confidence in our ability to meet and exceed

any reasonable expectations.

Q5: Environmentally friendly materials have been used, and how does it work?

A5: The material corresponding to RoHS regulation and reach in Europe is available and is

actually used. For each material, if you have a request to use the material for the environment

from customers, we propose a suitable material and process it based on the decision.

Q6: Is the material readily available?

A6: Depending on the material. The procurement / T is somewhat different, and most of the

materials can be delivered on the next business day. However, it may be difficult to incorporate

materials in such s because it is often disturbed by the price of materials and the effect of

social conditions.

Q7: Worried about the scars on delivery, etc?　　　　　　　　　　　　　　　　　　　　　　　　　　　

A7: Please rest assured. Beanut bag, partition, cushioning material, tray, corrugated cardboard,

wooden box, etc.are firmly packaged in the form of packing. It is thought that there are various

bad conditions during transportation such as bad weather, unpaved road, trouble driving, and

collapsing. Even if there is such an unexpected event, I try to do the packing which does not

affect the product.

Q8: Can I have a check repot?

A8: Yes, of course. We inspect the dimensions of each item of the extracted item according to

the number of products to the inspection of our regulations, and decide whether it is possible or

not. ]The quality control department can be said to be the last defensive wall for not putting out

the defective product outside the company.

Q9: How long is the quotation valid?

A9: The Quotation valid for 30 days. The unit price will not change unless there is a

significant change in the material cost and exchange rate. However, according to the

rules established by our company, we have to reestimate it for 30 days.
