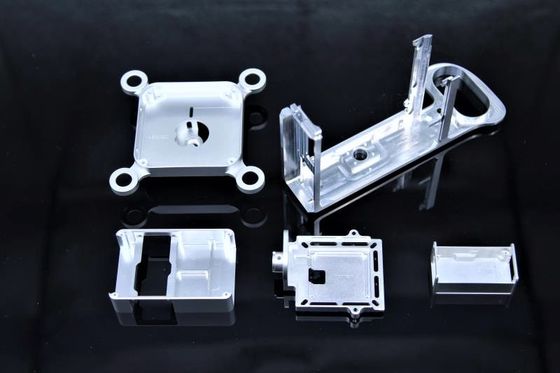

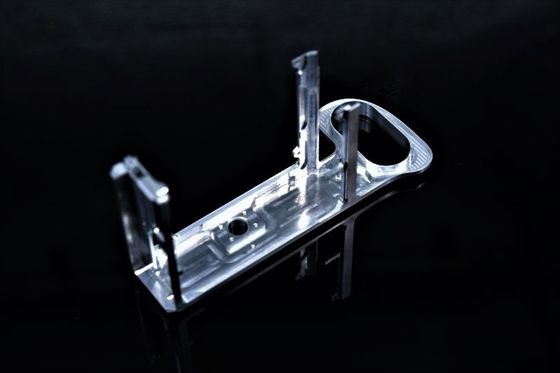

High Performanc UAV Parts 3 4 5 Axis Unmanned Aerial Vehicle Camera Components

High Performanc UAV Parts 3 4 5 Axis Unmanned Aerial Vehicle Camera Components

High-performanc 3 4 5 Axis Unmanned aerial vehicle Camera Parts CNC Defense Machined

Monitor Parts components

Material: AL7075             Surface:Anodizing      Rugosity:Ra0.4

Tolerance:0.01-0.03mm   Flatness:0.01mm       Thickness:0.5㎜

L*W*H(mm)=120mm*50mm*90mm              　Verticality:0.03㎜

Metal:Titanium TC4,TA9,TW340,AL2012,AL2A12,AL6082,AL6061,AL7075,SUS303,SUS304,30CrMn.
Machine:CNC machinging center,CNC lathe,Wire cutting macine,Milling machine,Grinding machine,EDM.
Surface treatment:sand blast,,anodizing,Engraving,Gold plating.
Purpose:unmanned aerial vehicle,drone, UAV,UUV,Aerospace,Defense,Aircraft,guided missile,Submarine,

Navigation, military.

Main Products Display

Processing all kinds of metal and plastic matenrials with the change of the times,the materials chosen by

customers are changing constantly,in order to meet the different material needs of customers,we have

accumulated a very rich and wide range of process characteristics and technical know-how of mechanical

processing of metal and non-metal materials through continuous technological innovation and research

and development.

Main Machining Machinery Display

Latest technology including:

CNC Milling Service

CNC Turning Service

CNC Milling and Turning Multiple

Mechanical Parts Design

Precision Engineering Services

Parts Assemble

EDM-Wire Cutting

Laser Cutting

Precision Grinding

Auto-Lathing Turning

Injection Moulding

MIMMoulding Die Casting

Production Capabilities Minimum Tolerance

Outer diameter dimension(turning Process) 0.01mm

Outer diameter dimension(centerless grinding process) 0.005mm

Outer diameter dimension(step grinding process) 0.005mm

Internal diameter dimension(turning process) 0.01mm

Center distance dimension( CNC milling process) 0.01mm

length,width,high(cnc milling process) 0.01mm

surface roughness Ra0.2a

Run-out 0.01mm

Roundness 0.01mm

Flatness 0.01mm

perpendicular 0.01mm

Cylindricity 0.01mm

Quality policy:

Quality manufacturing we strive for perfection,we maintain good technical

interaction with suppliers and customers with efforts to drive for quality excellence in our products,we take

pride in every of our manufacturing and management process to eliminate errors and deficiencies .

We understand that customer's satisfied with the quality and service is an important indicator of successful

companies.The way the company wins depends on high-precision machine for high quality requirements of

various components.

With the rapid development of global economy, competition and challenges in various fields have become

inevitable. We are adhering to the firm spirit of enterprise and constantly pursue innovation, and are brave

enough to face and overcome all kinds of severe test.My team is consistently innovating and developing

our capability to align and meet the ever-changing market dynamics and technology advancement, in

providing efficient supply-chain &cost efficiency to our customers for their end—users. we strongly believe

in creating“win-win”synergy with our customers to build a long—term strategic partnership for mutual growth.

Xinya precision — professional Precision metal parts industry for more than ten years

Continuously provide for you quality and speed try our best do everything.

It is our goal to meet our customers’ expectation through good quality, fast delivery service, productivity and

continuous improvement.Shenzhen Xinya Precsion Machining Co., Ltd. is to be your best choice and

long-term partner.

Customer's requirement is our standard. In the long-term production process, we have

established a perfect quality management system, so that product quality can be controlled

steadily in the manufacturing process. We strictly enforce the operation rules and quality

standards from the aspects of material purchasing, R&D and design, process flow and

quality inspection, all of which originate from our unremitting pursuit of quality.



We can't give you the lowest price, we can only give you good quality. We would rather

explain the price to you for a while than apologize for the quality for a lifetime. If we only

want to pursue profits, we can achieve the goal of fast sales by reducing costs. But we think

that only perfect quality is our pride, in order to promise that we will not be proud of

short-term benefits. Selling the future, our efforts and persistence are recognized and

followed by more and more customers, which is the greatest driving force for us to continue

to move forward. We can not thank you, but only report quality.



Quality Inspection Links and Inspection Items		Introduction of Various Quality Testing Instruments
1.Inspection of raw materials		3CMM
IQC Inspectors will inspect surface,size and matcertificate provided of materials.		CMM can be defined as "a detector which can move in three directions.

                                ▼                                                                    ▼

2.First sample inspection		3CMM
Technicians and quality personnel will carry out self-inspection of the first sample, Batch production can not begin until the full size is qualified		Meanwhile length, width,height, verticality, parallelism, cylindricity and contour accuracy can be measured.

                                ▼                                                                    ▼

3.Process Inspection & Circuit Inspection		2.5CMM
IPQC-checked regularly After start of mass production, we can find out influence of mechanical equipment changes and tool wear on size in time.		Usually takes the image into the computer through CCD for measurement and calculation.

                               ▼                                                                     ▼

4.Air tightness check, water pressure check		High Altimeterr
If you have assembled parts of product and required to inspect withstand pressure and leak inspection, we can do it.		High Altimeter (also known as altimeter) is used to measure the height of space points relative to the ground.

                               ▼                                                                      ▼

5.Final Inspection of Manufacturing Process		Micrometer	Calipers
FQC is abnormal, it will be considered there is a quality problem between the inspection tour to final product. the FQC is an important link to ensure quality.

                              ▼                                                                      ▼

6.Full inspection of appearance and key dimensions		Comparator	Inner diameter micrometer
All finished products will be inspected for scratches, bruises, debris, threads, burrs and other appearance problems.

                               ▼                                                                      ▼

7.Over Quantity Check		Pin gauge,block gaugeT	hread gauge, pass gauge
OQC will carry out strict inspection according to drawings and quantity order. This inspection is also the last defensive wall to prevent the flow of defective products.

                               ▼                                                                      ▼

8. Fill in the quality inspection report		Material Sheet	Quality inspection report
The results of actual measurement are collated and the quality inspection report is made. Delivery with goods to customers.

                              ▼                                                                      ▼

9. Packing		Rohs report	MSDS Sheet
Finally, it is packed into special cartons or composite boxes to arrange related logistics and transportation



Our measuring equipment:
CMM
Projector
Concentricity measurement
Hardness tester
Thread Ring Gauges
Pin Gauges
Micrometer
Vernier Caliper
Roughness machine
Our precision machined components are implemented of ISO9001:2015,combined with

our in-house quality control system and these measuring equipments,ensure problem-free

products.
